Some parts are long, some complex, some both. DFP Pott GmbH mills with travels up to 3,000 mm and workpiece weights up to 2,500 kg. Programming is AI-assisted, directly at the machine. From single part to batch, milled to drawing, documented and measured on request.
Programming is AI-assisted, directly at the control. That shortens the path from drawing to first cut, especially for single parts and spare parts. A tool magazine with 200 positions keeps the tools for many jobs ready, and a pallet changer with 30 pallets sets up the next workpiece while the current one runs. For complex geometries, DFP Pott GmbH also machines in 5-axis simultaneous mode: free-form surfaces, angles, and undercuts in a single setup.
Not every part fits in a standard machining center. DFP Pott GmbH mills with travels up to 3,000 × 800 × 720 mm and workpiece weights up to 2,500 kg. The B-axis reaches angled surfaces and bores without reclamping, and 70 bar through-spindle coolant enables deep hole drilling, for example. Beams, frames, long housings, and base plates are machined in a single setup, programmed AI-assisted directly at the machine.

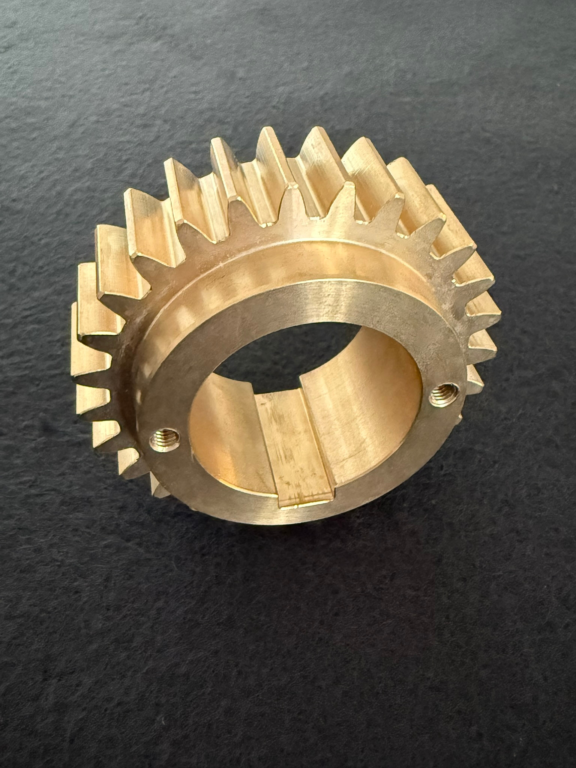

Whether single part, pre-series, or ongoing series: DFP Pott GmbH mills to drawing, STEP file, or a sample part. One example: a gear as a spare part, made from a sample, with gearing and keyway in a single setup. Metals, non-ferrous metals, and engineering plastics. What comes out of the milling center moves on to grinding and inspection without changing shops; the tolerance chain stays closed.
Every milled part is documented and fully measured on request. A 3D coordinate measuring machine with an 800 × 1,500 × 700 mm measuring range checks geometry and position against the drawing. On request, you receive a First Article Inspection Report (FAIR) and dimensional report, audit-ready to DIN EN ISO 9001:2015.
A STEP file and drawing, or a sample part: that is enough to start. DFP Pott GmbH checks feasibility and lead time and responds with a binding estimate.
DFP Pott GmbH mills with travels up to 3,000 × 800 × 720 mm and workpiece weights up to 2,500 kg. Beams, frames, long housings, and base plates too large for standard machining centers are machined in a single setup. For different dimensions, DFP Pott GmbH checks feasibility against your drawing.
Yes. DFP Pott GmbH machines complex geometries in 5-axis simultaneous machining. Free-form surfaces, angles, and undercuts are created in a single setup, which reduces reference errors and keeps the tolerance chain closed. Suited for parts with tightly toleranced surface position.
Yes. DFP Pott GmbH mills single parts, prototypes, pre-series, and ongoing series to drawing, STEP file, or a sample part. Metals, non-ferrous metals, and engineering plastics are machined. Every part is documented to DIN EN ISO 9001:2015 and measured on request.
